Aluminum Rod

Aluminum Rod

aluminium 01

Aluminum bars are thin, long and cylindrical pieces of aluminum made of metal. They are often used in many industrial applications. They are preferred in various fields because aluminum is lightweight, corrosion resistant and a good conductor.

Aluminum bars are used in the metalworking industry, construction industry, electrical and electronics industry, automotive industry, furniture production and many more. They are often available in customized sizes and thicknesses, so they can be tailored for different projects.

Aluminum bars can be shaped and cut into various shapes, as they are a material that is easy to process. They are also available with different surface finish options, which can make them aesthetic and durable.

Diameter Ø D(mm)	Kg/m	Diameter Ø D(mm)	Kg/m	Diameter Ø D(mm)	Kg/m
3	0,019	26	1,438	69,8	0,037
3,4	0,024	27	1,552	70	10,427
4	0,034	27,5	1,600	71	10,723
4,4	0,041	28	1,668	72	11,033
5	0,054	29	1,789	75	11,966
5,25	0,058	30	1,915	76	12,287
5,5	0,065	30,15	1,934	77	12,613
6	0,077	30,4	1,966	78	12,950
6,3	0,084	31	2,044	80	13,622
6,5	0,090	31,8	2,151	82	14,304
6,8	0,098	32	2,178	83	14,655
7	0,104	33	2,316	85	15,378
7,5	0,120	34	2,459	86	15,734
7,62	0,124	35	2,606	87	16,110
7,7	0,126	36	2,758	90	17,232
8	0,136	37	2,914	93	18,399
8,5	0,154	38	3,072	95	21,273
9	0,172	39	3,236	100	22,133
9,35	0,185	39,6	3,336	102	23,455
9,5	0,195	40	3,405	105	25,741
9,8	0,204	40,5	3,491	110	28,148
10	0,212	41	3,576	115	30,634
10,8	0,249	42	3,753	120	30,634
11	0,257	42,4	3,827	125	33,240
11,85	0,299	42,9	3,915	127D	34,312
12	0,306	43	3,935	130	35,952
12,5	0,332	43,2	3,972	140	41,696
13	0,360	44	4,119	145 D	44,728
13,5	0,388	44,8	4,270	150	47,865
14	0,417	45	4,308	155	51,110
14,7	0,458	46	4,501	160	54,460
14,8	0,466	47	4,699	170	61,480
15	0,479	48	4,900	178 D	67,402
15,6	0,518	49	5,107	180	68,926
15,9	0,544	50	5,318	190	76,800
16	0,544	50,2	5,360	200	85,094
16,2	0,558	50,4	5,404	203	87,665
17	0615	51	5,533	228 D	110,6
17,7	0,666	52	5,756	230 D	112,537
18	0,689	53	5,979	240 D	122,535
19	0,768	54	6,207	250 D	132,959
19,5	0,808	55	6,438	260 D	143,809
19,9	0,842	55,4	6,530	280 D	166,784
20	0,851	55,5	6,556	300 D	191,462
20,5	0,894	55,8	6,700	350 D	260,6
20,8	0,921	56	6,671	400 D	340,376
21	0,938	57	6,914	620 D	817,753
21,5	0,943	58	7,156
21,8	1,022	59,8	7,611
22	1,029	60	7,662
22,2	1,06	60,5	7,650
23	1,126	61	7,916
23,6	1,185	62	8,177
23,7	1,195	63	8,443
24	1,225	63,5	8,582
24,5	1,291	65	8,988
25	1,330	66	9,267
25,4	1,33	68	9,837

Modal Box Title

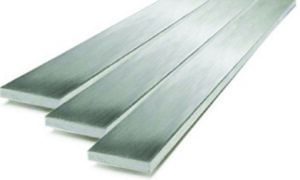

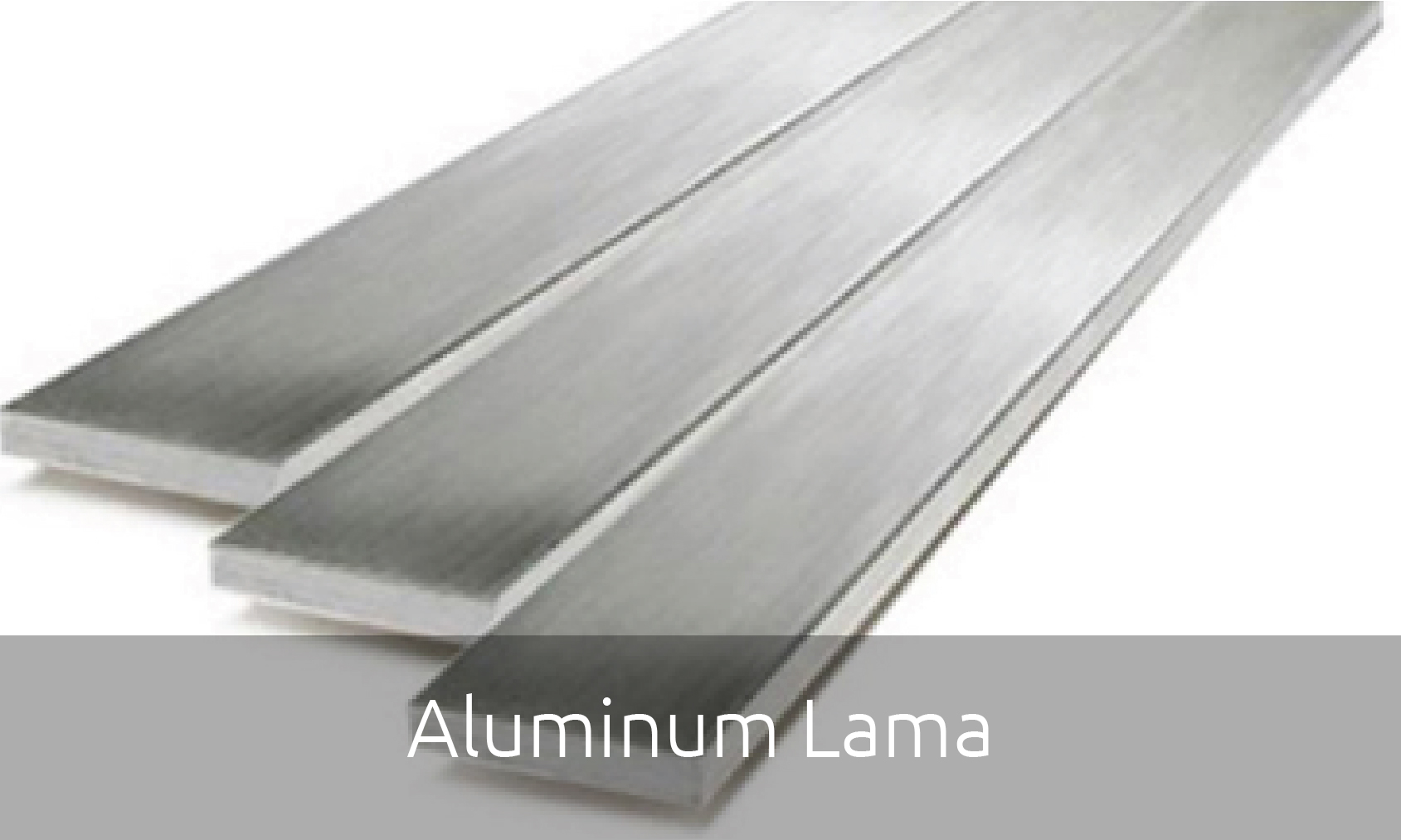

Aluminum Lama

aluminium 02

Aluminum llamas are thin, straight and usually long pieces made of aluminum. The term llama is often used to refer to long and narrow pieces made of materials such as metal, wood or plastic. Aluminum slats are widely used in a variety of industrial and commercial applications.

Aluminum slides are lightweight, corrosion resistant, have a high strength-to-strength ratio and are excellent conductors. For this reason, they are used in many fields from the construction industry to the electrical and electronics industry, from the packaging industry to the automotive industry.

Aluminum slats are available in various sizes and thicknesses and can often be cut or shaped for special projects.

Aluminum slats are often treated with various surface coating processes, making them more durable and giving them an aesthetic appearance.

B (mm)	S (mm)	Kg/m	B (mm)	S (mm)	Kg/m	B (mm)	S (mm)	Kg/m
4	2,5	0,027	25	2	0,136	40	5	0,542
4	3	0,33	25	2,5	0,166	40	6	0,629
5	4	0,054	25	3	0,203	40,5	5,5	0,601
5,5	4	0,6	25	4	0,271	40	10	1,084
8,6	7,6	0,185	25	5	0,339	40	10(R5)	1,026
10	1,5	0,041	25	6	0,41	40	12	1,3
10	2	0,054	25	7	0,474	40	15	1,626
10	3	0,081	25	8	0,542	40	20	2,168
10	5	0,136	25	10	0,678	40	22	2,385
10	6	0,15	25	15	1,016	40	24	2,602
10	11	0,298	25	20	1,355	40	25	2,71
10	18	0,488	25	24	1,626	40	30	3,252
10	28	0,759	25	22	1,52	40	35	3,794
12	5	0,163	25	10	1,759	40	36	3,902
12	7	0,227	25,5	25	1,897	42	15	1,707
12	10	0,335	28	13	1,022	43	20	2,331
14	3,5	0,133	28	1,4	0,114	45	2	0,244
14,5	3	0,122	29	2	0,163	45	3	0,366
15	3	0,203	30	3	0,244	45	5	0,61
15	5	0,224	30	4	0,325	45	8	0,976
15	5,5	0,407	30	4,5	0,366	45	10	1,22
15	10	0,488	30	5	0,407	45	15	1,829
15	12	0,126	30	8	0,65	46	25	3,117
15,5	3	0,21	30	10	0,813	46	32	3,989
15,5	5	0,043	30	12	0,976	48	10	1,301
15,8	1	0,434	30	15	1,22	49	10	1,328
16	10	0,173	30	20	1,22	50	1,6	0,217
16	4	0,498	30	25	2,032	50	2	0,271
16,4	11,2	0,295	31	1	0,084	50	3	0,407
16,4	6,5	0,325	31,78	25	2,188	50	5	0,678
17	7	0,1	32	1,5	0,135	50	6	0,813
18	2	0,146	32	3,8	0,33	50	8	1,084
18	3	0,23	32	10	0,867	50	10	1,355
18	5(R2,5)	0,39	33	4,7	0,42	50	10(R)	1,297
18	8	0,488	33	6	0,537	50	12	1,626
18	10	0,2	34,2	5	0,464	50	15	2,033
18,5	4	0,243	35	1	0,089	50	20	2,71
18,9	5	0,528	35	2	0,19	50	22	2,981
19,5	10	0,081	35	3	0,285	50	25	3,388
20	1,5	0,108	35	5	0,474	50	30	4,065
20	2	0,141	35	10	0,949	50	40	5,42
20	2,6	0,163	35	20	1,897	50	45	6,098
20	3	0,271	35	22	2,087	50,2	3	0,402
20	5	0,271	35	30	2,846	50,2	5,15	0,685
20	8	0,434	35	33	3,13	51	26	3,593
20	10	0,542	38,1	12,7	1,311	52	8	1,127
20	15	0,813	38,1	22,2	2,292	52	15	2,114
20,3	12,3	0,677	38,2	6,2	0,619	52	25	3,519
20,5	5,5	0,303	38	28	2,883	52	29	4,087
21	10(R5)	0,51	39	21	2,2	53	2	0,287
22	2	0,119	39,5	4,5	0,482	54	10	1,463
22	4	0,238	40	1,2	0,129	55	3	0,447
22	12	0,715	40	1,4	0,152	55	35	5,217
22,5	2,5	0,166	40	2	0,217	55	38	5,664
23	6,8	0,242	40	3	0,325
24	4	0,26	40	4	0,434

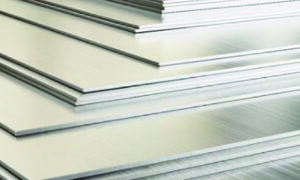

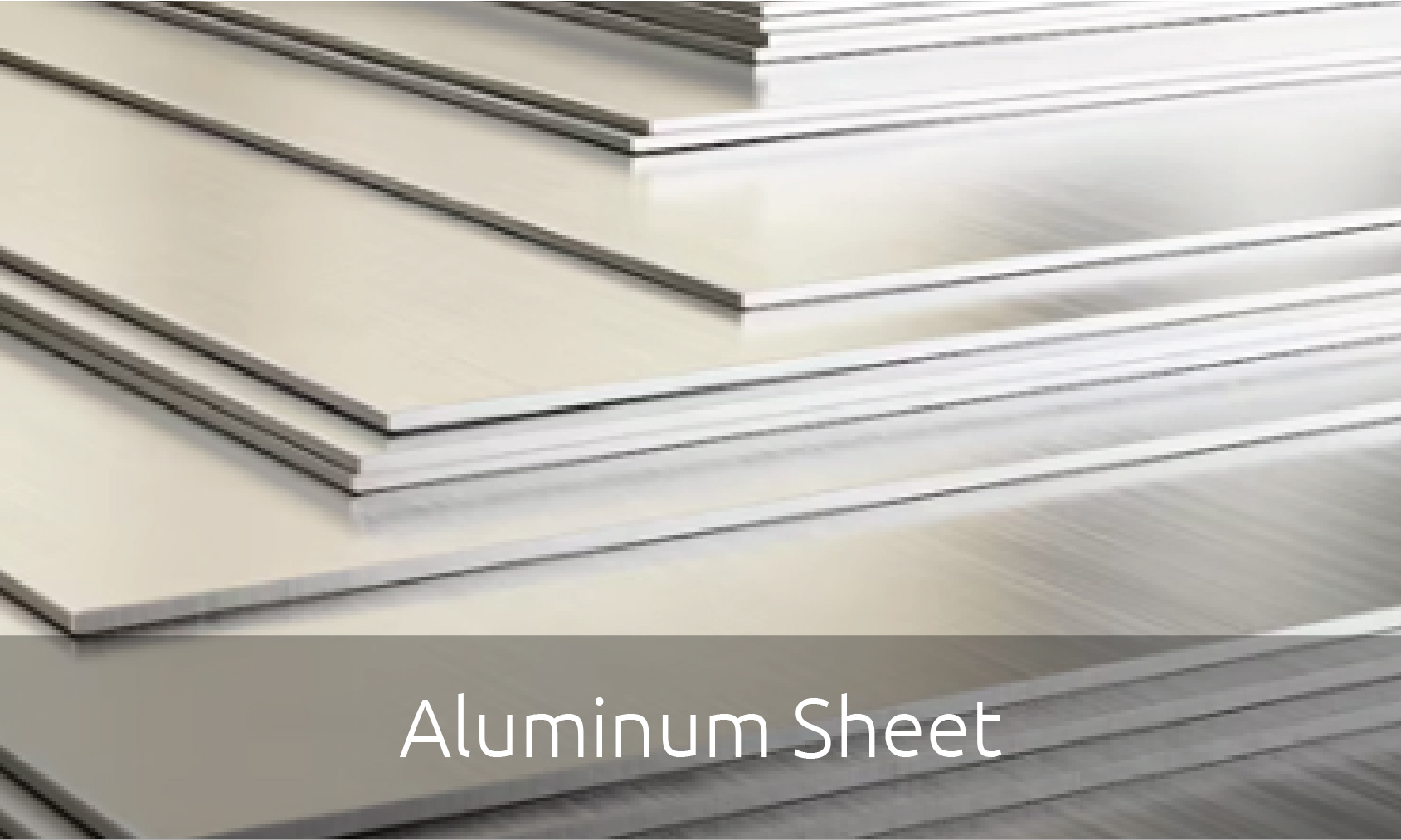

Aluminum Sheet

aluminium 03

Aluminum sheets are flat, wide and thick plates of aluminum. These sheets are widely used in various industrial, commercial and domestic applications. The fact that aluminum is lightweight, corrosion resistant, a good conductor and easily machinable makes it preferred in a variety of uses.

Aluminum sheets are used in the construction industry, automotive industry, aerospace industry, electrical and electronics industry, packaging industry and many other fields. For example, in the construction industry, they can be used as wall cladding, roof cladding and exterior cladding. In the automotive industry, they are used for body panels and coatings of vehicles. In the electrical and electronics industry, they can be sheets used for cable sheaths, electrical panels and other components.

Aluminum sheets are usually available in a variety of thicknesses and sizes. They are also available with different surface treatment and coating options, which increases the durability of the sheets and provides an aesthetic appearance. They can be shaped through various processes such as CNC machining, cutting, drilling, bending, so they can be made suitable for different projects.

Thickness (mm) / Size (mm)	*10001000**	*10002000**	*10003000**	*12002400**	*12003000**	*15003000**
0,2	0,542	1,,084	1,626	1,561	1.951	2,439
0,3	0,813	1,626	2,439	2,341	2,927	3,659
0,4	1,084	2,168	3,252	3,122	3,902	4,878
0,5	1,355	2,71	4,065	3,902	4,878	6,098
0,6	1,626	3,252	4,878	4,683	5,854	7,317
0,7	1,897	4,065	5,691	5,463	6,829	8,537
0,8	2,168	4,878	6,504	6,244	7,805	9,756
1	2,71	5,691	8,13	7,805	9,756	12,195
1,2	3,24	6,504	9,72	9,366	11,707	14,634
1,5	4,065	8,13	12,195	11,707	14,634	18,293
2	5,42	9,72	16,26	15,61	19,512	24,39
2,5	6,775	12,195	20,325	19,512	42,39	30,488
3	8,13	16,26	24,39	23,414	29,682	36,585
4	10,84	20,325	32,52	31,219	39,024	48,78
5	13,55	40,65	40,65	39,024	48,78	60,975
6	16,26	48,78	48,78	46,829	58,536	73,17
8	21,68
9	24,39
10	27,1
11	29,81
12	32,52
13	35,235
14	37,94
15	40,65
16	43,36
17	46,07
18	48,78
19	51,49
20	54,2

Aluminum Pipe Profile

aluminium 04

Aluminum pipe profiles are a building material that allows aluminum to be used in various industrial applications. These profiles are produced by taking advantage of the lightweight, durable and corrosion-resistant properties of aluminum. They are usually produced in various shapes and sizes and can be used for a variety of purposes.

Aluminum tube profiles are widely used in many different industries. For example, they can be used in the construction industry to produce building elements such as door and window frames, roofing, wall panels. They can also be used in the furniture industry, automotive industry, electrical and electronics industry, and many other fields.

These profiles are usually produced by aluminum extrusion. This process involves melting the aluminum and pouring it into molds. The desired pipe profile is then obtained through various shaping and cutting processes. These profiles can be in different shapes and sizes and can be custom-made according to the customer’s needs.

Aluminum pipe profiles are preferred because they are lightweight, easy to shape and durable. In addition, aluminum’s inherent corrosion resistance ensures long life and low maintenance.

D (mm)	S (mm)	Kg/m	D (mm)	S (mm)	Kg/m	D (mm)	S (mm)	Kg/m	D (mm)	S (mm)	Kg/m
6	1	0,043	21	2	0,321	30	3	0,689	40	5	1,489
7	1	0,051	21	4,4	0,62	30	3,5	0,77	40	5,5	1,615
8	1	0,06	21,8	1,1	0,194	30	4,75	1,03	40	7	1,966
9	1	0,68	22	1	0,18	30	5	1,064	40	7,5	2,074
9	1,75	0,108	22	1,2	0,213	30	7	1,37	40	10	2,554
9,35	2,65	0,151	22	1,5	0,262	30	8	1,498	40	10,75	2,675
9,5	1	0,073	22	2	0,34	30	8,5	1,55	40	12,5	2,925
7,7	0,85	0,05	22	2,5	0,415	30	9	1,608	40	15	3,191
10	1	0,077	22	3	0,485	30	10	1,702	40,5	15	3,277
10	1,2	0,09	22	5	0,723	30	10,5	1,75	41	1,5	0,504
10	1,5	0,109	22	6	0,817	30,4	2,4	0,572	41	2,5	0,82
10	2	0,136	22	7	0,894	32	1	0,264	41	3	0,97
11	1,2	0,1	22,5	3	0,498	32	2	0,511	41	8,5	2,351
11	2,65	0,188	22,5	4,25	0,66	32	2,5	0,628	41	11	2,808
12	1	0,094	23	1	0,187	32	5	1,149	42	1,5	0,517
12	1,5	0,134	23	1,5	0,274	32	6,5	1,421	42	2	0,681
13	1	0,102	24	2	0,374	32,5	5,75	1,309	42	2,5	0,845
13	1,4	0,138	24	2,5	0,457	33	1	0,402	42	3	0,996
13	2	0,187	24	5	0,808	33	1,5	0,528	42	5	1,574
13	3,5	0,283	24	6	0,191	33	2	0,764	42	9	2,528
14	11	0,111	24	8,75	1,136	33	3	0,987	43	1,5	0,53
14	2	0,204	24,6	2,8	0,52	33	4	0,67	43	3	1,021
14	3,3	0,3	24,8	1,1	0,222	34	2,5	0,791	43	5,5	1,755
15	1	0,119	25	1	0,204	34	3	0,908	44	2,5	0,883
15	2,1	0,231	25	1,2	243	34	3,5	1,021	44	3	1,047
15	4,15	0,383	25	1,5	0,3	34	4	1,234	44	8,5	2,568
15	5	0,425	25	2	0,392	34	5	0,289	44	15,75	3,786
16	1	0,128	25	2,5	0,479	35	1	0,428	44,5	4,75	1,607
16	5,3	0,163	25	3	0,562	35	1,5	0,562	44,5	8,3	2,557
16	1,5	0,185	25	4	0,714	35	2	0,691	45	1,5	0,555
16	2	0,238	25	5	0,851	35	2,5	0,817	45	2	0,732
16	2,,5	0,287	25	5,5	0,913	35	3	1,277	45	2,2	0,801
16	3	0,332	25	6,5	1,023	35	5	1,381	45	2,5	0,904
16	4	0,38	25	7,5	1,117	35	5,5	1,839	45	3	1,072
16	4,5	0,491	25	9,25	1,24	35	8	2,52	45	3,5	1,236
18	5	0,468	26	1,5	0,313	35	14,3	2,591	45	9	2,757
18	5,75	0,501	26	2	0,408	35,5	14,5	0,298	45	10	2,979
18	1,1	0,158	26	2,5	0,5	36	1	0,44	46	2,5	0,925
18	1,6	0,225	26	3	0,587	36	1,5	0,842	46	3	1,098
18	2	0,272	26	6	1,022	36	3	1,532	47	2	0,766
18,8	3	0,39	26	7	1,132	36	6	1,632	47	2,5	0,946
19	5	0,555	27	1,5	0,326	36	6,5	0,734	47	3	1,125
19	6,25	0,166	27,4	1,1	0,246	37	2,5	0,868	47	7	2,383
19	3	0,153	28	1	0,23	37	3	1,123	47,5	2,75	1,049
19	4	0,182	28	1,2	0,274	37	4	0,315	48	1,5	0,594
19	5	0,223	28	1,5	0,338	38	1	0,755	48	2	0,783
19	6,25	0,289	28	2	0,443	38	2,5	0,896	48	2,5	0,97
19,5	7,5	0,38	28	2,5	0,543	38	3	1,634	48	3	1,15
20	4,75	0,435	28	3,5	0,73	38	6	2,458	48	4	1,498
20	1,9	0,156	28	6,75	1,121	38	10,5	2,713	48	6	2,145
20	1	0,165	28	8	1,36	38	12,5	0,777	48,5	12,5	3,829
20	2,5	0,236	28	10	1,53	39	2,5	0,919	49	1,5	0,606
20	3	0,306	29,3	1,9	0,443	39	3	2,758	49	2	0,8
20	4	0,372	29,5	2,25	0,552	39	12	0,332	49	2,5	0,99
20	5	0,434	29,5	4,95	1,034	40	1	0,412	49	3	1,175
20	6,25	0,545	29,5	5,75	1,162	40	1,25	0,491	49	8,5	2,93
20	7,5	0,645	29,7	2,4	0,557	40	1,5	0,647	50	1	0,417
20,5	4,75	0,731	30	1	0,247	40	2	0,798	50	1,5	0,62
20,8	1,9	0,798	30	1,3	0,29	40	2,5	0,943	50	1,7	0,7
21	1	0,594	30	1,5	0,363	40	3	0,025	50	2	0,817
			30	2	0,477	40	3,5	1,07	50	2,5	1,011
			30	2,5	0,585	40	4	1,225	50	3	1,2
D (mm)	S (mm)	Kg/m	D (mm)	S (mm)	Kg/m	D (mm)	S (mm)	4Kg/m	D (mm)	S (mm)	Kg/m
50	3,5	1,39	63,5	1,5	0,8	90	2,5	1,87	115	10	8,95
50	4	1,566	64	2	1,055	90	3	2,221	115	17,5	14,525
50	5	1,915	64	5	2,511	90	3,5	2,58	116	8	7,353
50	10	3,404	64	10	4,595	90	5	3,617	117	3,5	3,381
50	12,5	3,99	65	2	1,08	90	7,5	5,275	118	9	8,348
50	13,5	4,193	65	3,5	1,832	90	10	6,808	120	25	2,008
50	13,75	4,242	65	12,5	5,585	90	16	10,076	120	6	4,893
50	20	5,106	66	2	1,118	90	17	10,561	120	7,5	5,821
50,3	1,55	0,643	66	9	4,366	90	20	11,914	120	10	7,2
50,8	2,15	0,89	68	3,5	1,921	93	1,5	1,168	120	11	9,361
50,8	6,35	2,402	70	1,5	0,874	93	19,2	12,058	120	15	10,203
51	1	0,435	70	2	1,157	95	2,5	1,967	120	20	13,403
51	1,5	0,632	70	3	1,71	95	7,5	5,585	120	25	17,02
51	2	0,834	70	3,5	1,96	97	6,5	5,006	120	27,5	20,211
51	2,2	0,914	70	5	2,766	100	1	0,842	120	30	21,647
51	2,5	1,032	70	7,5	3,989	100	1,2	1,009	120	35	22,977
51	3,3	1,35	70	8	4,221	100	1,5	1,257	120	1,5	25,317
51	3	1,225	70	8,75	4,561	100	2	1,668	123	1,2	1,551
51	7,5	2,777	70	10	5,106	100	2,5	2,075	125	2	1,265
51	11	3,744	70	14	6,672	100	3	2,477	125	2,5	2,093
52	1,3	0,656	70	15	7,021	100	3,5	3,084	125	14	2,606
52	2	0,851	70	20	8,51	100	4	3,268	125	14,5	13,225
52	2,5	1,053	70	22,5	9,095	100	5	4,042	125	25,25	13,66
52	3	1,251	71	2	1,175	100	7,5	5,904	126,5	3,5	21,652
52	3,5	1,402	71	18	8,119	100	10	7,659	127	8,5	3,679
52	4	1,634	72,4	5,35	3,053	100	11	8,331	127	13,5	8,572
52	5	2	72,5	3,1	1,831	100	15	10,85	127	25,5	13,04
52	6	2,349	73	1,5	0,913	100	17,5	12,286	127	3	22,026
53	1,5	0,657	74	5,5	3,206	100	20	17,344	130	4	3,242
53	2,5	1,074	75	1,1	0,692	100	25	15,956	130	5	4,393
53	3	1,277	75	1,7	1,07	100	33,5	18,958	130	10	5,319
54	2,5	1,096	75	2	1,243	101,5	1,5	1,271	130	15	10,216
54	3	1,302	75	2,5	1,543	101,8	6,3	5,07	130	16	14,68
54	5	2,085	75	4	2,415	102	1,3	1,114	130	18,5	15,523
55	1,5	0,902	75	5	2,98	102	2	1,702	130	25	17,554
55	1	1,117	76	1,5	0,951	103	1,5	1,296	130	4	22,339
56	1,2	0,696	76	3	1,864	103	5	4,17	133	4	4,393
56	1,5	3,268	76	15,6	8,018	104	11	8,706	140	6	4,631
56	2	3,915	76,2	1,3	0,83	104	24,5	16,575	140	7,5	6,842
56	2,5	5,45	77	4	2,5	105	2,5	2,182	140	10	8,47
57	3	1,379	78	4	2,519	105	11,5	9,15	140	15	11,063
57	3,5	2,213	80	1	0,627	106	2	1,77	140	20	15,956
58,5	4	0,728	80	1,5	1,002	107	1,5	1,078	140	30	20,424
60	5	0,502	80	2	1,328	107	2	1,787	140	9	28,083
60	9	0,6	80	3,5	2,25	107	3,5	3,083	140	3	10,646
60	10	0,747	80	6	3,778	108	10	8,34	148	7	3,753
60	15	0,987	80	13	7,412	110	1,2	1,111	150	15	8,519
60	20	1,223	80	22,5	11,01	110	5	4,475	150	6,5	17,25
60	2	1,455	80	25	12,286	110	8,5	7,342	150	5	8,065
60	1,3	1,66	81	1,75	1,084	110	10	8,51	152	3,5	6,34
60	1,5	1,906	81,5	7,5	4,723	110	11,25	9,454	154	4	4,572
60	2,5	2,34	82	6	3,881	110	15	12,127	157	12	5,255
60	8,5	3,906	82	12	7,148	110	20	15,318	158	2,5	14,91
60	2,15	4,225	83	1,5	1,04	110	22,5	16,754	158	7,6	3,35
60	15	5,744	85	2,5	1,755	110	27,5	19,307	160	35	10,41
60	20	6,808	85	7,5	4,946	112	3,5	3,232	168,5	6	40,21
62	2	1,022	86	2	1,43	112	20	15,658	170	7	8,884
63	1,3	0,683	88	2,5	1,819	113	22,5	1,423	180	41	10,424
63	1,5	0,785	88	4,5	3,198	114	27,5	3,744	182	8	49,196
63	2,5	1,287	89	2,2	1,625	114	3,5	4,638	182	41	44,584
63	8,5	3,944	89	2,5	1,855	115	20	2,859	202	6	10,978
63,5	2,15	1,122	90	2	1,498	115	1,5	4681	222	31	50,388
									253	19	37,836

Aluminum Angle Bar

aluminium 05

Aluminum angle brackets are profile shapes used to reinforce, flatten or protect the edges of aluminum sheets or plates. Usually L-shaped, they are used for various structural and decorative purposes.

Aluminum angle brackets are used in the construction industry to reinforce corner details indoors and outdoors. For example, they can be used on the inside corners of walls or exterior facades to provide an aesthetic appearance and at the same time increase the durability of the corners. They can also be used in furniture manufacturing, interior decoration and other industrial applications.

These angles are usually produced by the aluminum extrusion method. This process involves melting the aluminum and pouring it into special molds. The result is the desired L-shaped profile. These profiles usually come in different sizes and thicknesses, making them suitable for a variety of projects.

There are several reasons why aluminum angle brackets are preferred. These include the fact that aluminum is lightweight, corrosion resistant, easy to shape and provides an aesthetic appearance. It is also advantageous that aluminum has a long service life and low maintenance

A (mm)	B (mm)	SA (mm)	SB (mm)	Kg/m (mm)	A (mm)	B (mm)	SA (mm)	SB (mm)	Kg/m (mm)	A (mm)	B (mm)	SA (mm)	SB (mm)	Kg/m (mm)
10	10	1,2	1,2	0,061	40	40	2	2	0,423	82,55	63,5	12,7	12,7	4,589
10	5	1,5	1,5	0,055	40	40	3	3	0,626	89	89	6,5	6,5	3,021
10	10	1,5	1,5	0,075	40	40	4	4	0,824	90	40	3	3	1,033
10	10	2	2	0,098	40	40	5	5	1,016	90	60	3	3	1,195
15	10	1,5	1,5	0,096	41,15	31,75	5	5(R4)	0,92	90	90	5	5	2,371
15	10	2	2	0,125	42,8	10,5	1,3	1,3	0,183	100	20	1,2	1,2	0,386
15	15	1,2	1,2	0,094	50	16	5	5(R3)	0,827	100	20	1,4	1,4	0,449
15	15	2	2	0,152	50	20	1,2	1,2	0,224	100	20	2	2	0,64
17	17	1	1	0,089	50	20	2,5	2,5	0,19	100	20	3	3	0,951
20	10	1	1	0,08	50	20	1,5	1,5	0,279	100	40	2,5	2,5	0,932
20	10	1,5	1,5	0,116	50	30	1,2	1,2	0,256	100	50	2	2	0,802
20	10	2	2	0,152	50	30	2	2	0,423	100	50	4	4	1,583
20	10	2,5	2,5	0,19	50	30	3	3	0,626	100	60	6	6	2,504
20	12	1	1	0,084	50	30	4	4	0,824	100	60	8	8	3,295
20	15	2	2	0,179	50	40	1,2	1,2	0,289	100	60	10	10	4,065
20	20	1	1	0,106	50	40	2	2	0,477	100	70	10	10	4,336
20	20	1,2	1,2	0,126	50	50	1,2	1,2	0,322	100	75	7	7	3,186
20	20	1,5	1,5	0,157	50	50	2	2	0,531	100	100	10	10	5,149
20	20	2	2	0,206	50	50	2,5	2,5	0,661	110	60	3	3	1,358
20	20	3	3	0,3	50	50	3	3	0,789	110	90	10	10(R20)	4,878
25	25	0,95	0,95	0,126	50	50	5	5	1,287	115	65	10	10	4,607
25	25	1,2	1,2	0,159	50,8	25,4	3,2	3,2	0,633	120	120	4	4	2,558
25	25	2	2	0,26	50,8	50,8	6,35	6,35	1,639	150	20	2	2	0,911
25	25	3	3	0,382	51,2	21,2	1,2	1,2	0,23	190	20	2	2	1,227
30	10	1	1	0,11	53	28	2	2	0,428
30	10	1,5	1,5	0,157	55	18	3	3	0,569
30	15	1	1	0,119	60	15	1,8	1,8	0,357
30	15	1,2	1,2	0,143	60	20	1,2	1,2	0,256
30	15	2	2	0,233	60	20	1,5	1,5	0,319
30	20	0,9	0,9	0,12	60	20	2	2	0,423
30	20	1,2	1,2	0,159	60	20	4	4	0,824
30	20	2	2	0,26	60	28	2,3	1,5	0,409
30	25	1,5	1,5	0,217	60	30	2	2	0,477
30	25	2	2	0,287	60	40	1,2	1,2	0,371
30	25	3	3	0,423	60	40	2	2	0,531
30	30	1	1	0,152	60	40	4	4	1,04
30	30	1,2	1,2	0,191	60	40	5	5	1,287
30	30	1,5	1,5	0,238	60	45	15	15	3,67
30	30	2	2	0,314	60	60	1,5	1,5	0,482
30	30	3	3	0,463	60	60	1,5	1,5	0,482
30	30	4	4	0,607	60	60	3	3	0,951
31	31	4	4	0,629	60	60	5	5	1,558
35	18	3	3	0,406	60	60	6	6	1,854
35	22	2	2	0,298	70	20	2	2	0,477
35	35	2	2	0,369	70	40	4	4	1,149
35	35	3	3	0,545	70	50	2	2	0,64
35	35	4	4	0,715	70	50	3	3	0,951
36,5	5	1,5	1,5	0,163	70	70	5	5	1,816
36,5	10	1,5	1,5	0,183	75	50	5	5	1,626
40	10	1,2	1,2	0,159	76	76	6	6	2,374
40	20	1,2	1,2	0,191	80	20	1,2	1,2	0,321
40	20	1,5	1,5	0,238	80	20	1,4	1,4	0,373
40	20	2	2	0,314	80	20	2	2	0,531
40	20	3	3	0,463	80	30	1,3	1,3	0,383
40	28	6	6	1,008	80	40	1,5	1,5	0,482
40	30	1,2	1,2	0,224	80	40	4	4	1,257
40	30	1,5	1,5	0,278	80	40	6	6	1,865
40	35,5	4	4	0,775	80	80	6	6	2,504
40	40	1,2	1,2	0,256	80	80	8	8	3,295
40	40	1,5	1,5	0,318	80	80	10	10(R15)	4,065

requirements.

Aluminum Rectangle

aluminium 06

Aluminum rectangles are plates or profiles of aluminum cut or extruded into rectangular shapes. Such rectangles are used in a variety of industrial, structural and decorative applications.

Aluminum rectangles are widely used in the manufacture and assembly of various building elements, often used in the construction industry. For example, they can be used for structural components such as window frames, door frames, roofing, wall panels. They can also be preferred in interior decoration projects, furniture manufacturing and the construction of industrial equipment.

These rectangles are usually produced by extruding aluminum. The extrusion process takes place by heating the aluminum and forcing it into special molds. In this way, rectangular profiles of the desired size and thickness are obtained.

There are several reasons why aluminum rectangles are preferred. These include the fact that aluminum is lightweight, has a high strength-to-strength ratio, is corrosion resistant and low maintenance. In addition, aluminum’s aesthetic appearance and variety of color options are also advantageous.

A (mm)	B (mm)	S (mm)	R1(mm)	R2 (mm)	Kg/m
12	6	1	1	…	0,086
16	12	2	…	…	0,26
17	12	1,5	…	…	0,215
18	12	1,5	…	…	0,22
20	10	1	…	…	0,152
20	12	1,5	…	…	0,22
20	10	1,7	…	…	0,245
20	10	2	2	…	0,281
20	15	1,5	…	…	0,26
22	16	1,5	…	…	0,285
25	15	2	…	…	0,39
25	17	1,2	…	…	0,258
25	17	2	…	…	0,412
25	20	2	…	…	0,444
29	27	1,5	…	…	0,431
30	10	2	…	…	0,39
30	15	1,5	…	…	0,342
30	15	2	…	…	0,444
30	20	1	…	…	0,26
30	20	1,2	…	…	0,31
30	20	1,5	…	…	0,382
30	20	2	…	…	0,499
32	17	3	…	…	0,699
35	25	2	0,3	…	0,604
39	19	1	…	…	0,304
40	20	1	…	…	0,314
40	20	1,2	…	…	0,375
40	20	1,5	…	…	0,463
40	20	2	…	…	0,607
40	20	3	…	…	0,878
40	25	1,6	…	…	0,536
40	25	2	…	…	0,661
40	25	2,5	…	…	0,82
40	25	5	…	…	1,49
40	30	1,2	…	…	0,44
40	30	2	…	…	0,715
40	30	3	…	…	1,041
42	22	3	…	…	0,943
43	18	1	…	…	0,32
43	20	1,2	…	…	0,394
44	41	2	…	…	0,87
45	26	2	…	…	0,726
45	40	2	…	…	0,878
50	20	1,2	…	…	0,44
50	20	1,4	…	…	0,51
50	20	2	…	…	0,715
50	25	1,5	…	…	0,585
50	25	2	…	…	0,77
50	25	3	2	…	1,114
50	25	5	…	…	1,762
50	30	1,5	…	…	0,626
50	30	2	…	…	0,823
50	30	2,5	…	…	1,016
50	30	3	…	…	1,203
50	40	1	…	…	0,477
50	40	1,2	…	…	0,57
50	40	1,5	…	…	0,707
50	40	2	…	…	0,932
50	40	4,75	…	…	1,783
51	45	2	…	…	0,998

Modal Box Title

aluminium 07

Aluminum squares are square cut or extruded plates or profiles of aluminum. These squares are used in a variety of industrial, structural and decorative applications.

Aluminum frames are widely preferred in the manufacture and assembly of various structural elements used in the construction industry. For example, they can be used for structural components such as window frames, door frames, roofing, wall panels. They are also frequently used in interior decoration projects, furniture manufacturing and the construction of industrial equipment.

These squares are usually produced by extruding aluminum. The extrusion process takes place by heating the aluminum and forcing it into special molds. In this way, square profiles in desired sizes and thicknesses are obtained.

There are several reasons why aluminum squares are preferred. These include the fact that aluminum is lightweight, has a high strength-to-strength ratio, is corrosion resistant and has low maintenance requirements. It is also advantageous that aluminum offers aesthetic appearance and a variety of color options.

A (mm)	S (mm)	R1 (mm)	R2 (mm)	Kg/m
10	1,2	…	…	0,114
10	1,5	…	…	0,138
12	1	…	…	0,119
13	0,7	…	…	0,093
15	1	…	…	0,152
15	3	…	…	0,4
16	1	…	…	0,163
17	1,2	…	…	0,206
20	0,9	…	…	0,185
20	1,2	…	…	0,245
20	1,5	…	…	0,301
20	2	…	…	0,39
25	2	1	…	0,499
25	2	3	…	0,48
25	2,5	…	…	0,61
25,4	1,65	…	…	0,401
29,4	1,5	…	…	0,454
30	1	…	…	0,314
30	1,5	…	…	0,463
30	1,5	3	1	0,444
30	1,8	…	…	0,55
30	2	…	…	0,607
30	5	…	…	1,355
32	2	…	…	0,65
32	3	…	…	0,943
33	3	2	…	0,971
40	1	…	…	0,423
40	1,2	…	…	0,505
40	1,5	…	…	0,626
40	2	…	…	0,824
40	2,5	2	2	1,026
40	3	…	…	1,203
44	3	…	…	1,333
45	2	…	…	0,932
50	1,5	…	…	0,789
50	2	…	…	1,041
50	3	…	…	1,528
50	4	…	…	1,995
50	5	…	…	2,439
55	2	…	…	1,149
57	3	…	…	1,756
60	1,5	…	…	0,951
60	2	…	…	1,257
60	2,5	…	…	1,558
60	3	…	…	1,855
64	6,3	…	…	3,94
70	2	…	…	1,474
70	4	…	…	2,861
75	4	…	…	3,079
80	1,6	…	…	1,36
80	1,8	…	…	1,526
80	2	…	…	1,691
80	3	…	…	2,504
100	2	…	…	2,125
100	2,5	…	…	2,642
100	3	…	…	3,154
100	4	…	…	4,163
120	3	…	…	3,82

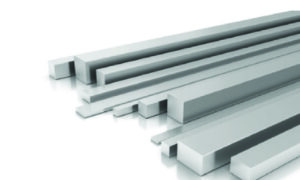

Aluminum Square Bar

aluminium 08

Aluminum squares are square cut or extruded plates or profiles of aluminum. These squares are used in a variety of industrial, structural and decorative applications.

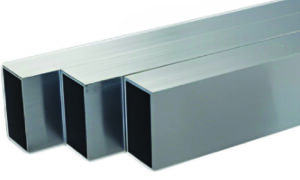

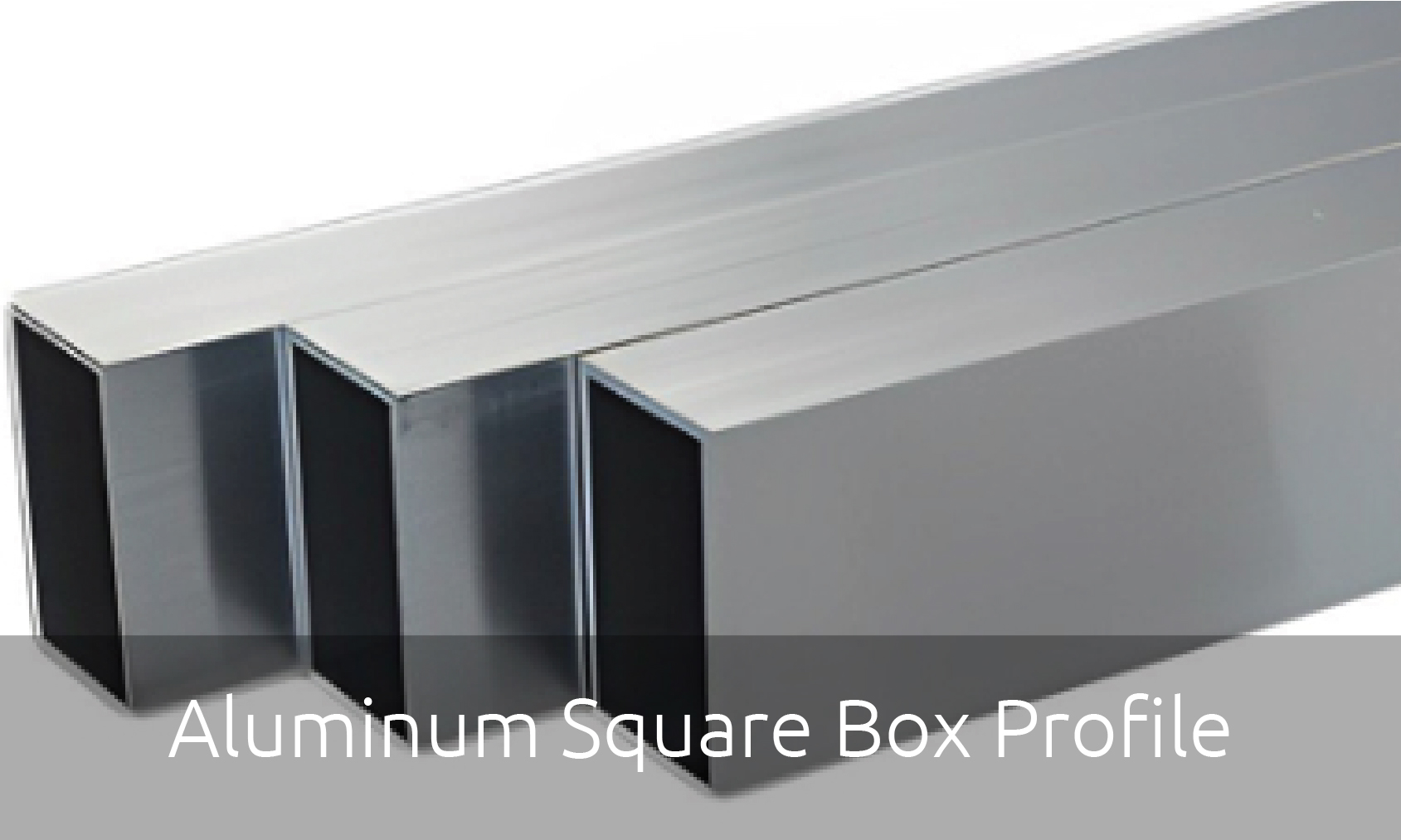

Aluminum Square Box Profile

aluminium 09

Aluminum square bars are square-shaped bars of aluminum. They are generally used for industrial, structural and decorative purposes. These bars are widely used in various industrial applications, construction industry, furniture manufacturing, electrical and electronics industry and many more.

Aluminum square bars are produced in various sizes and thicknesses. They are usually produced by extruding aluminum. This process involves heating the aluminum and shaping it by forcing it into special dies. The result is square bars of the desired size and thickness.

These square bars can be used for a variety of purposes. For example, they can be used as a structural support element, they can be used as frames or legs in the manufacture of furniture, or they can be used for decorative purposes.

There are several reasons why aluminum square bars are preferred. These include the fact that aluminum is lightweight, has a high strength-to-strength ratio, is corrosion resistant and has low maintenance requirements. In addition, aluminum’s aesthetic appearance and variety of color options are also advantageous.

Size a(mm)	Kg/m
3,7	0,037
4	0,043
4,8R	0,062
4,9	0,065
5	0,068
5,IR	0,070
6	0,097
6,6	0,120
6,9	0,130
7,5R	0,153
8	0,173
8,2R	0,182
9,3	0,234
9,65R	0,237
10	0,271
12	0,390
12,5	0,428
14R	0,531
15	0,610
16	0,694
18	0,878
18,5	0,928
20	1,084
21,5	0,983
21,95R	1,300
22	1,315
24	1,561
25	1,694
25,5	1,762
27R	1,973
27,5	2,049
28,9R	2,187
29	2,279
29	2,304
30	2,439
35	3,320
38	3,913
38,I	3,977
40	4,336
42	4,780
45	5,488
46	5,734
50	6,775
50R	6,738
51	7,049
55	8,198
56,5	8,747
60	9,756
62	10,408
65	11,450
70	13,279
71	13,661
72	14,049
75	15,244
77	16,068
80R	17,111
80	17,344
85	19,580
90	21,951
96R	24,975
100	27,100
110	32,791
120	39,024
125R	42,329
130	45,799

Aluminum Hexagonal Profile

aluminium 10

Aluminum U Profile

aluminium 11

Aluminum T Profile

aluminium 12
